Triplett POE2000 PoE Tester Pro Inline Power Over Ethernet Detector - PSE-Type/Class, Power Source, Polarity, Voltage, and Current

The Triplett POE2000 helps to speed up the installation and troubleshooting of PoE system devices. It can detect PSE-type/class, power source, polarity, voltage, current, power, and whether it is End Span (1/2, 3/6), Midspan (4/5, 7/8), or across all 4 pairs. If you are a VoIP phone and IP camera installer, you will know if there is power and a data pair available for your equipment. There is a test mode that can determine if a standard PoE (36 to 60V) or non-standard (11 to 60V) passive PoE is being used. For inline power level monitoring the display alternates between Voltage, Current and Power and incorporates a step button for selecting specific data to display. No batteries required, the POE2000 uses system power when connected to a device.

• Four LEDs indicate IEEE802. 3af or 802. 3at/bt standard

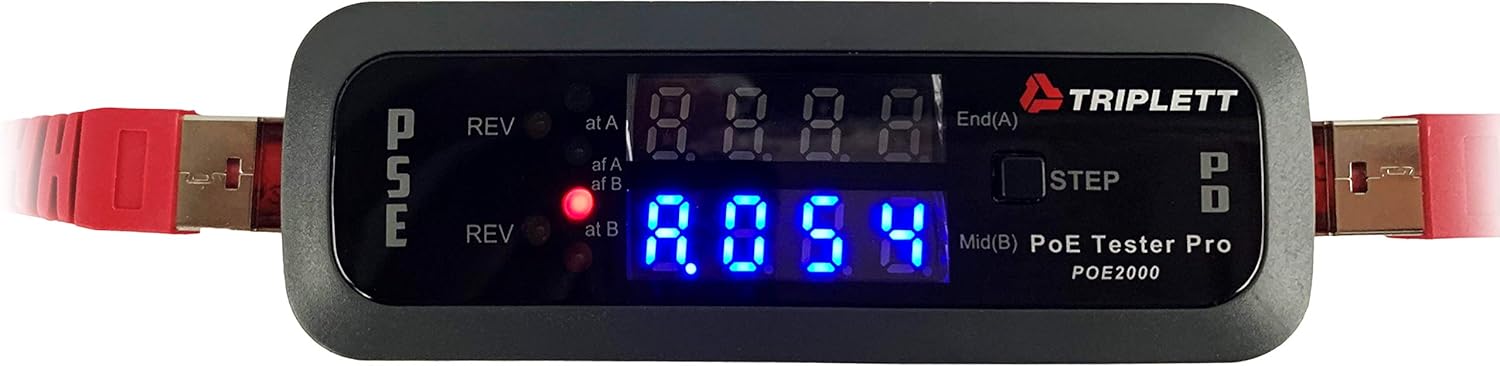

• Dual 7-digit LEDs indicate power source either End Span (1/2, 3/6) or Mid Span (4/5, 7/8) or across all four pairs
• Determines standard PoE or non-standard passive PoE
• Two yellow LEDs indicate reversed polarity for power type
• When used inline, the display alternates between Voltage, Current and Power with a step button for selecting specific data to display
