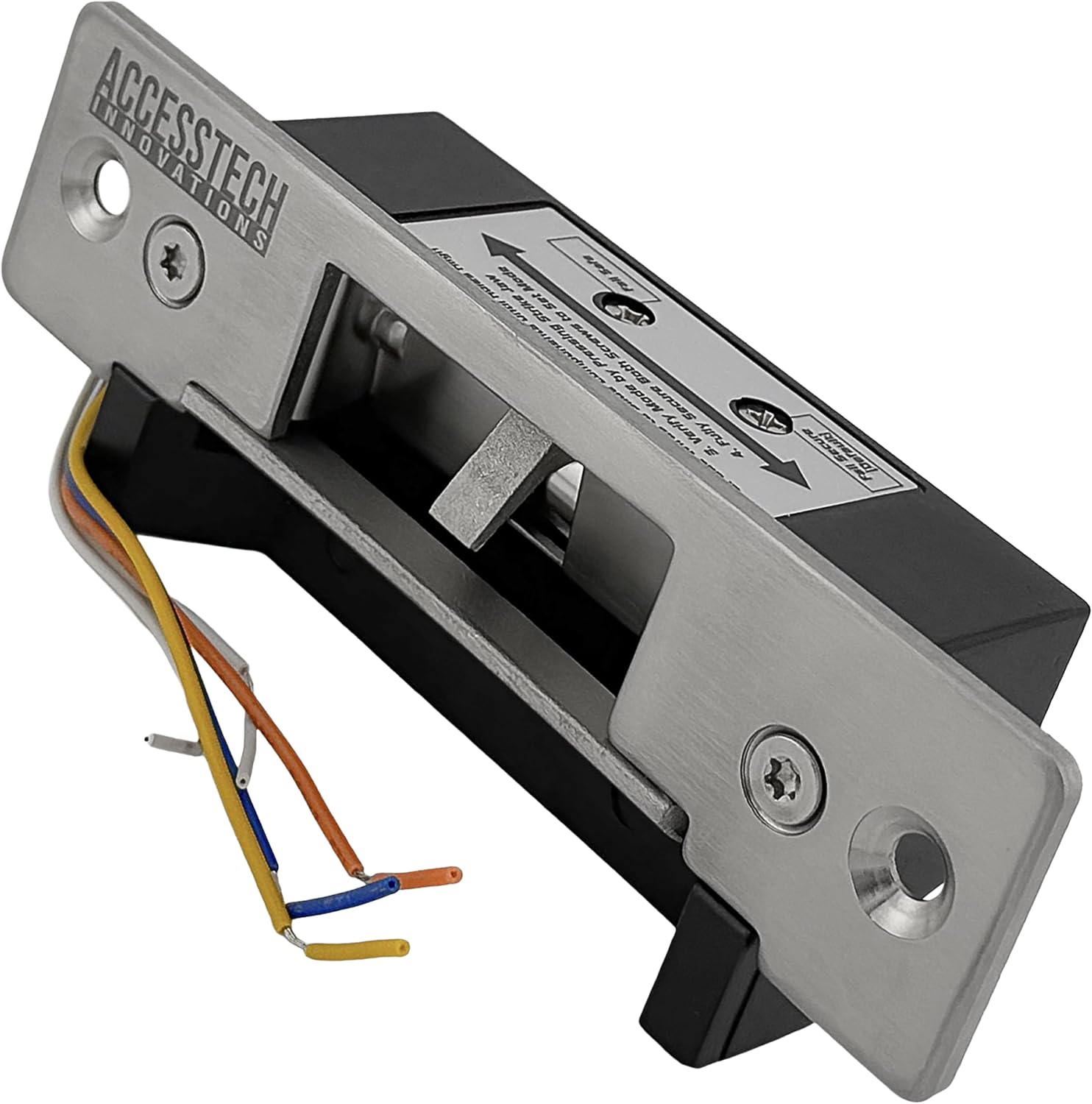

Heavy Duty Electric Strike Door Lock ANSI Standard with Signal Output/Door Position Indicator for Access Control System | Fail-Secure/Fail-Safe Adjustable | NO/NC Output | 12VDC Input Voltage
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by egy-fizikal.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by egy-fizikal.com
Free 30-day returns Details
Product details
| Management number | 210235405 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 210235405 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

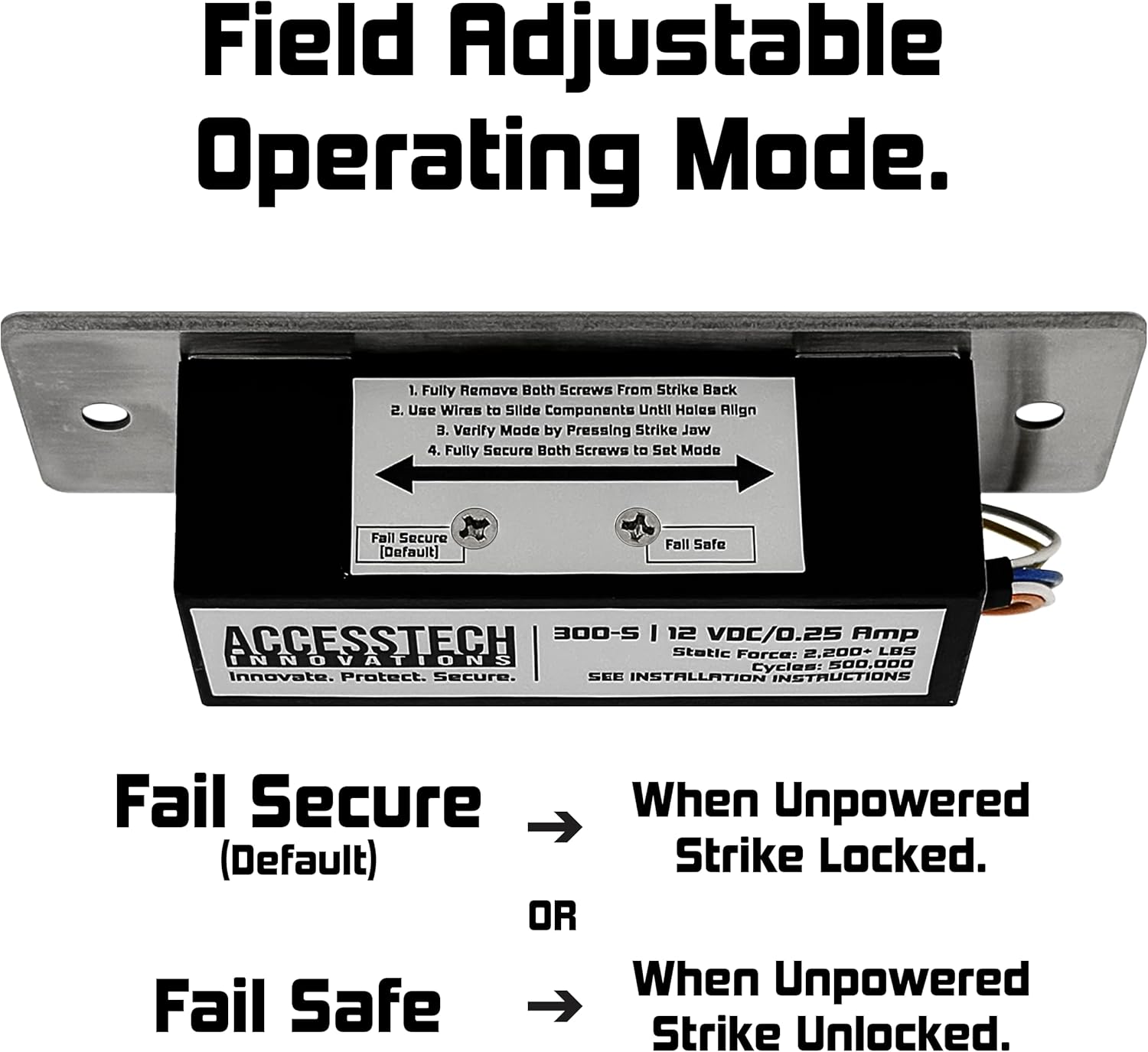

- FAIL-SECURE / FAIL-SAFE ADJUSTABLE: Lock can be switched between both modes by adjusting a screw. Fail Secure (Default) means device is Locked when Unpowered, Fail Safe means device is Unlocked when Unpowered.
- SIGNAL OUTPUT: Built in door position switch eliminates the need for an external door contact. Can be wired in both NO/NC orientation. Normally Open (NO) gives output when door is Closed while Normally Closed (NC) gives output when door is Open.
- VOLTAGE & DIMENSIONS: 12 Volt DC Input @ 250mA | Overall Size (LxWxH) 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm) – LatchBolt sizes up to 5/8”
- STRONG & DURABLE: Jaw Strength rated at 2,200+ Lbs and cycle tested up to 500,000 times.
- ACCESS CONTROL: Electric door strike can convert cylindrical lock sets into an electronic access controlled locking system.

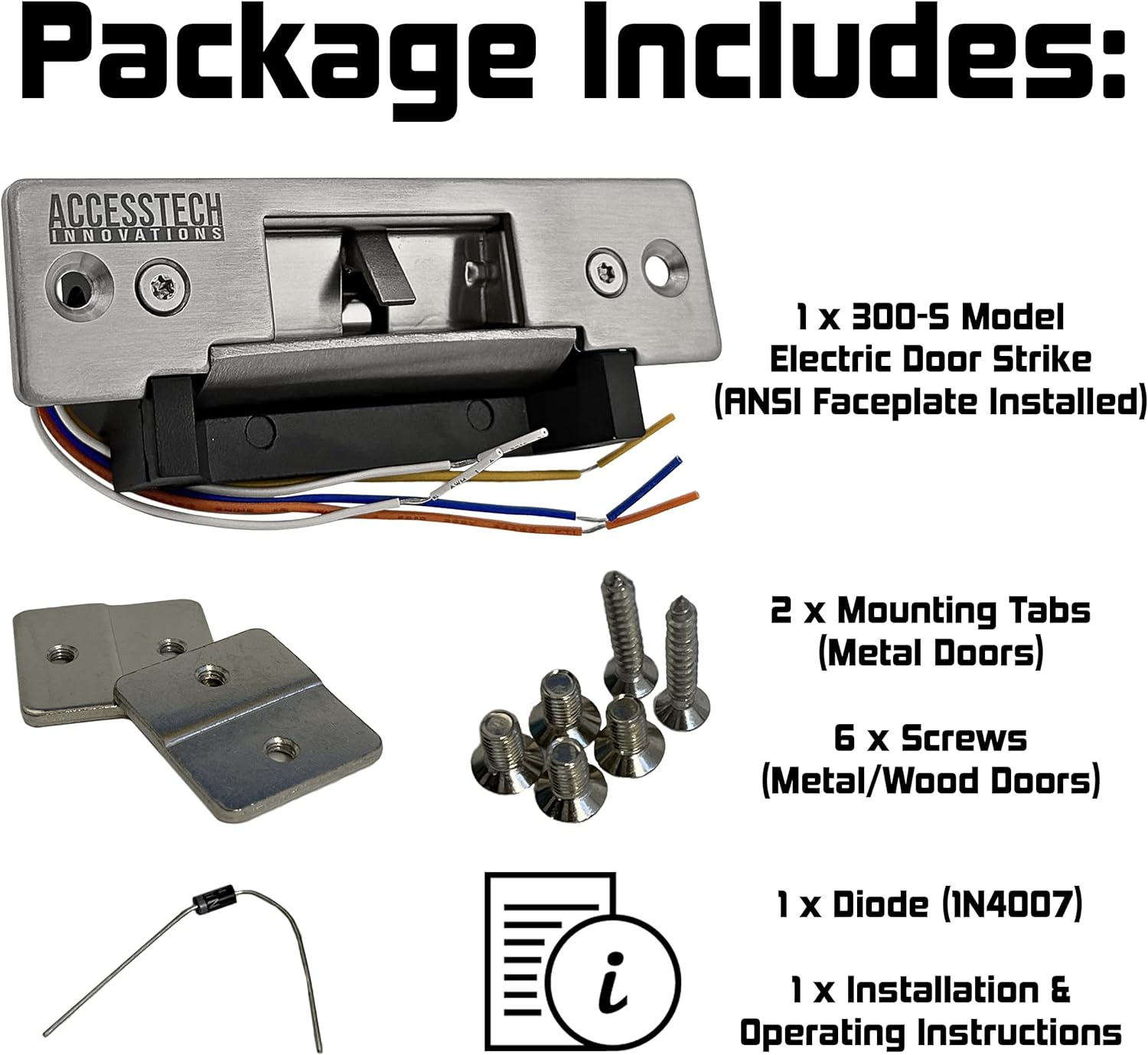

- PACKAGE CONTENTS: 1 x Electric Door Strike Device | 2 x Mounting Tabs | 4 x Screws | 1 x Diode | 1 x User Manual
| UPC | 795850881205 |
|---|---|
| Color | Silver and Black |
| Lock Type | Built In Door Contact Switch, Electric Strike |
| Brand Name | AccessTech Innovations |
| Style Name | Modern |
| Unit Count | 13.4 Ounce |
| Finish Types | Stainless Steel |
| Manufacturer | AccessTech Innovations |
| Model Number | 300-S |
| Material Type | Metal |
| Control Method | App |
| Item Type Name | Electric Lock |
| Item Dimensions | 4.87 x 1.69 x 1.25 inches |
| Additional Features | Built In Door Contact Switch |
| Included Components | 1 x ANSI Standard Electric Door Strike Device, 1 x Diode, 1 x User Manual, 2 x Mounting Tabs, 4 x Screws |
| Recommended Uses For Product | Commercial and Industrial Applications, Access Controlled Doors, Offices, Warehouses |
